7.1 Accessories for ensuring the safe operation

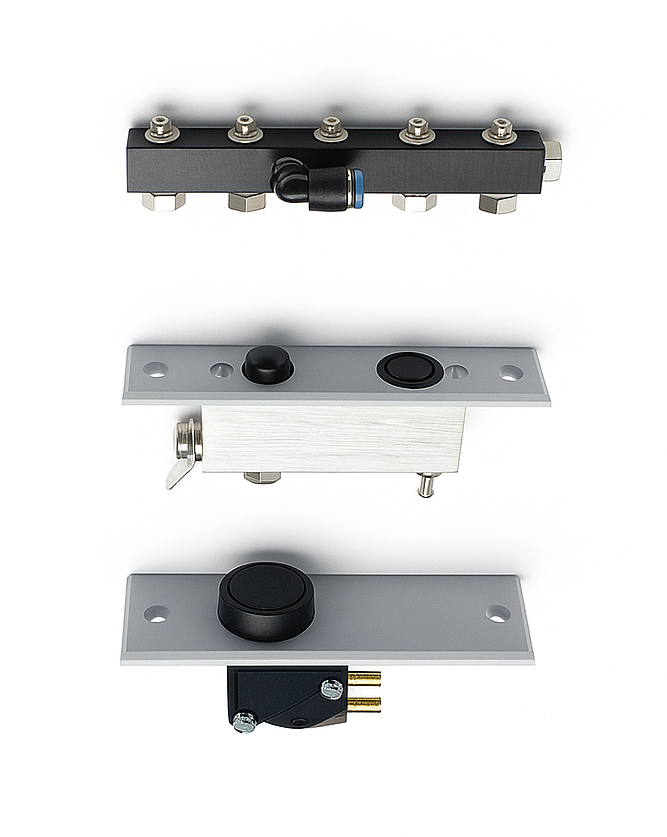

A central triggering field with integrated button or switch is available for the conductor bonding components with cover plate.
Order data:
| Technical data: | |
| Directly controlled 3/2 way valve (micro tappet valve) | |
| Medium: | Filtered compressed air without oil |
| Design: | Directly operated single-sided seat valve with pull-back spring |
| Pressure range: | max. 8 bar |
| Operating force: | At 6 bar operating pressure = 6 N |
| Temperature range: | 0 – 60 °C |
| Connection: | Connection nipple for plastic hose NW 3 mm |
Order data:
Central triggering – pneumatic with button
Order No.: LKV – PT
Central triggering – pneumatic with switch
Order No.: LKV – PS
| Assembly instructions: | |
| Cover plate dimensions: | 95 x 30 x 3 mm |
| Fixing hole distance: | 80 mm |
| Hole diameter: | 3,1 mm (Senkkopf) |
