1.1 Single components for automation and testing technology

Data sheet

Pneumatic bonding for single lines with flat blade connections, cable lugs, wire-end sleeves, tinned ends etc.

Function
The contact is made by inserting the line into the bonding outlet. The process is triggered by a control tappet which will be pressed down approx. 1 mm by the conductor. Bonding is performed by a clamping piston connecting line and housing.
Bonding is opened by interrupting the air supply using the LKV opening button, the magnetic valve, the air-operated button, foot-operated valve, etc.

Technical features

  • Quick and exact establishment of bonding
  • Possibility of correction using the LKV opening button in case of wrong assignment
  • Simultaneous release of all connections
  • Suitable for transferring higher and lower currents/voltages
  • Easy assembly

Produkt 1

Technical data

  • Compressed air supply, filtered and dry air ~ 6 bar
  • Air plug, 3 mm hose diameter (for other plugs, refer to data sheet)
  • Electrical connection with flat-blade connection 6.3 x 0.8 mm
  • Operating force 0,8 – 1,0 N
  • Clamping force 15 – 20 N
  • Dimension 60 x 25 x 12 mm


Please take note of our special accessories such as pneum. central opener, compressed air distributor.

1.2 Single components for automation and testing technology
Standard modules of the LKV-12 model series

Data sheet

Order data

3 different clamping hole diameters are available for adjusting the clamping task. Conductors, connector parts etc. with different dimensions can be thereby bonded safely. Furthermore, two versions are available.

Type O without cover plate for installation into the customer’s mounting plate
Type A with extensible cover plate

  • Order No.: LKV-D4-O-F2 (bonding outlet 4 mm)
  • Order No.: LKV-D6-O-F2 (bonding outlet 6 mm)
  • Order No.: LKV-D9-O-F2 (bonding outlet 9 mm)

Special versions upon request

datenblatt_1_2_1

  • Order No.: LKV-D4-A-F2 (bonding outlet 4 mm)
  • Order No.: LKV-D6-A-F2 (bonding outlet 6 mm)
  • Order No.: LKV-D9-A-F2 (bonding outlet 9 mm)

Special versions upon request

datenblatt_1_2_2

The standard version includes a 3 mm straight compressed air connector. If you need a swivelling angular connection, replace the „2“ in the order number by „WS“

datenblatt_1_2_4

For bonding smooth surfaces such as wire-end sleeves, etc. we recommend to use a clamping piston with cap. Use for this purpose the additional note „WK“ in your order. (order example LKV-D4-A-F2/WK)

Please take note of our special accessories such as
pneum. central opener, compressed air distributor.

1.3 Single components for automation and testing technology
Special module of the LKV-12 model series

Data sheet

Pneumatic bonding for small single lines with an outer diameter of 1.2 – 3 mm.
Also suitable for needle bonding with not bared lines.

Function
The contact is made by inserting the line into the bonding outlet. The process is triggered by a control tappet which will be pressed down approx. 1 mm by the conductor. Bonding takes place using a clamping piston or using a needle for not bared conductors. So, the connection is made between conductor and bonding module. (bonding point approx. 2mm from conductor end). Bonding is opened by interrupting the air supply using the bonding module opening button, a magnetic valve, the air-operated button, switch, etc.

Order data

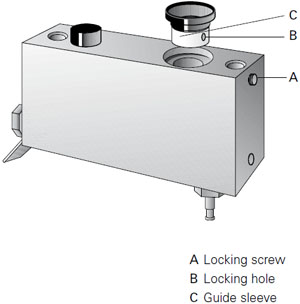

To ensure safe bonding of the conductor, the bonding outlet of the guide sleeve has to be adjusted to the conductor outer diameter. Indicate the conductor diameter (0.1 mm precision). We adjust the guide sleeve so that the conductor can be inserted easily and safe bonding is also ensured.

Technical features

  • Quick and exact establishment of bonding
  • Possibility of correction using the LKV opening button in case of wrong assignment
  • Simultaneous release of all connections
  • Suitable for transfer of small currents/voltages
  • Easy assembly

Technical data

  • Compressed air supply, filtered and dry air ~ 6 bar
  • Air plug, 3 mm hose diameter (for other plugs, refer to standard modules)
  • Electrical connection with flat-blade connection 6.3 x 0.8 mm
  • Operating force 0,8 – 1,0 N
  • Clamping force 15 – 20 N
  • Dimension 60 x 25 x 12 mm

LKV-12 model series

Note for version with needle contact: We endeavour to obtain a contact resistance between needle and flat plug of <10 ohms. A precise definition is possible only after knowledge of the line structure of the single conductor to be tested.

Please take note of our special accessories such as pneum. central opener, compressed air distributor.

1.4 Single components for automation and testing technology
Special module of the LKV-12 model series

Data sheet

Pneumatic bonding for single conductors with potential-free microswitch Function

The contact is made by inserting the line into the bonding outlet. The process is triggered by a control tappet which will be pressed down approx. 1 mm by the conductor. This tappet operates simultaneously a microswitch which can be used for potential-free switching of signals, visual displays, etc.
Bonding of the conductor is performed by a clamping piston connecting line and housing. Bonding is opened by interrupting the air supply using the LKV opening button, the magnetic valve, the air-operated button, foot-operated valve, etc. When opening the conductor bonding, the microswitch contact is also opened.

Technical features
  • Quick and exact establishment of bonding
  • Additional potential-free contact for signal processing
  • Possibility of correction using the LKV opening button in case of wrong assignment
  • Simultaneous release of all connections
  • Suitable for transferring higher and lower currents/voltages
  • Easy assembly

Technical Data

  • Compressed air supply, filtered and dry air ~ 6 bar
  • Air plug, 3 mm hose diameter (other plugs upon request)
  • Electrical connection with flat-blade connection 6.3 x 0.8 mm
  • Operating force 0,8 – 1,0 N
  • Clamping force 15 – 20 N
  • Dimension 60 x 25 x 12 mm

Technical data of microswitch

  • Contact rating 2A/12V VDC / 0,1A 125VAC
  • Minimum contact rating 1mA 5 VOC
  • UL and CSA approval

datenblatt_1_4_1

Please take note of our special accessories such as pneum. central opener, compressed air distributor.

1.5 Single components for automation and testing technology Special module of the LKV-12 model series

Data sheet

Pneumatic bonding for single conductors with isolated/non-isolated ring cable lugs

Function

The contact is made by inserting the line into the bonding outlet. The process is triggered by a control tappet which will be pressed down approx. 1 mm by the conductor. Bonding of the conductor is performed by a clamping piston connecting line and housing. Bonding is opened by interrupting the air supply using the LKV opening button, the magnetic valve, the air-operated button, foot-operated valve, etc.

Technical features

  • Quick and safe bonding
  • Possibility of correction using the LKV opening button in case of wrong assignment
  • Simultaneous release of all connections
  • Suitable for transferring higher and lower currents/voltages
  • Easy assembly


Technical data

  • Compressed air supply, filtered and dry air ~ 6 bar
  • Air plug, 3 mm hose diameter (other plugs upon request)
  • Electrical connection with flat-blade connection 6.3 x 0.8 mm
  • Operating force 0,8 – 1,0 N
  • Clamping force 15 – 20 N
  • Dimension 60 x 25 x 12 mm

Please take note of our special accessories such as pneum. central opener, compressed air distributor.

1.6 Single components for automation and testing technology

Data sheet

Available types of cases (dimensions in mm) for the LKV-12 model series

Standard case

Standard case with cover plate dimensions

Special case of the LKV-12/VA model series
For small grid sizes,
preferably for circle arrangement.

datenblatt_1_5_3
